• Paper: https://arxiv.org/abs/1512.03385
• Github: https://github.com/sehyunlee217/paper_implementations/tree/main/resnet

Paper Summary

Increase in layers in NNs causes vanishing/exploding gradient problems (think of chain rule, more multiplications of the partial derivatives can lead to very small gradients being updated or very large gradients). The authors finds thats deeper networks have higher training-error that is not caused by overfitting, also known as the degrading problem.

Given $H(x)$ being the desired mapping/output of network, instead of trying to learn $H(x) = F(x)$ directly, we instead learn $H(x) = F(x) + x,$ where the $+ x$ term is referred to identity mapping. The intuition behind this is deeper networks should perform equally or better than shallower networks, and in the extreme case where adding more layers has no effect, the added layers should form a identity mapping of $H(x) = F(x) = x$. However, in practice, this is not true. It is shown that solvers may struggle learning identity mappings if there are too many layers.

For example, without using residual connections, if we use $ReLU(x) = max(x, 0)$ as our non-linear activation function, and if the output of this function is 0 then at that layer $H(x) = F(x) ; H(x) = 0$, meaning that the identity of this layer is lost. Using $H(x) = F(x) + x$ can help push the non-linear layer to 0 and allow the $+x$ term to retain the identity mappings.

Formally, the resnet blocks are defined as : $y = F(x, \{W_{i}\}) + x$, where $F(\cdot)$ has the same dimension as $x$. If not, the paper performs a linear projection $W_{x}x$ to match the dimensions.

Implementation Details

• "We adopt batch normalization (BN) [16] right after each convolution and before activation" → apply BN after each convolution layer.
• "(B) The projection shortcut in Eqn.(2) is used to match dimensions (done by 1×1 convolutions). For both options, when the shortcuts go across feature maps of two sizes, they are performed with a stride of 2" → perform linear projection for the skip connection $W_{x}x$ using 1-D convolutions with stride 2 if dimensions don't match, else use identity.
• "For both options, when the shortcuts go across feature maps of two sizes, they are performed with a stride of 2". → stride = 2 for skip connections when output size (feature map dimensions) changes.

Linear Projection

class LinearProjection(nn.Module):
    """
    projects W_x * x
    Normally, stride should be 1 but 2 when it goes across different feature map dimensions.
    """

    def __init__(self, in_channel, out_channel, stride):
        super().__init__()
        # This is where we do the linear projection W_x * x using conv.
        self.conv = nn.Conv2d(
            in_channels=in_channel,
            out_channels=out_channel,
            kernel_size=1,
            stride=stride,
        )
        # Always batch norm after each conv.
        self.bn = nn.BatchNorm2d(out_channel)

    def forward(self, x):
        """forward pass for linear projection for identify mapping"""
        return self.bn(self.conv(x))

Residual Block (34 - Layer)

• Basic Resisual block: [3 x 3, C] x 3 → kernel_size=3, identical channels between layers, 3 layers per block.
• The feature map size halves at each block (56 → 28 → ...), meaning that we need stride=2 at least once to halve the dimensions.
• Channels are preserved within block, so padding=1 is required.

"""
    Building blocks for ResNet-34
    Conv -> BN -> Conv -> BN -> + residual
    """

    def __init__(self, in_channel, out_channel, stride):
        super().__init__()
        self.conv1 = nn.Conv2d(
            in_channels=in_channel,
            out_channels=out_channel,
            kernel_size=3,
            stride=stride,
            padding=1,
        )
        self.bn1 = nn.BatchNorm2d(out_channel)
        self.act1 = nn.ReLU()

        self.conv2 = nn.Conv2d(
            in_channels=out_channel,
            out_channels=out_channel,
            kernel_size=3,
            stride=1,
            padding=1,
        )
        self.bn2 = nn.BatchNorm2d(out_channel)

        if in_channel != out_channel:
            self.skipconnection = LinearProjection(
                in_channel=in_channel, out_channel=out_channel, stride=stride
            )
        else:
            self.skipconnection = nn.Identity()

        self.act2 = nn.ReLU()

    def forward(self, x):
        """
        forward function
        """
        skipconnection = self.skipconnection(x)

        x = self.act1(self.bn1(self.conv1(x)))
        x = self.bn2(self.conv2(x))

        return self.act2(x + skipconnection)

Resnet 34

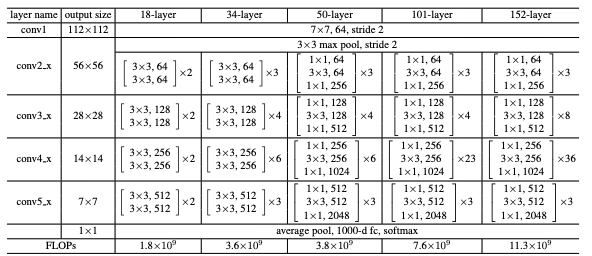

• In the table above, for ResNet-34, num_blocks = [3, 4, 6, 3], num_channels = [64, 128, 256, 512].

class ResNet34(nn.Module):
    """
    - num_blocks=[3, 4, 6, 3], num_channels=[64, 128, 256, 512])

    # first conv layer for Resnet34 -> takes (3,224,224) -> 7x7  convolution with 64 channels
        # output should be (64, 112, 112);
        # for convolution, out_size = floor{(Input - Kernel_Size + 2 * Padding) / Stride} + 1
        # in this case -->      112 = floor{(224 - 7 + 2*Padding) / 2} + 1
        # in this case -->      111 = floor{(224 - 7 + 2*Padding) / 2}
        # in this case -->      111 <= (224 - 7 + 2*Padding)/2 < 112
        # in this case -->      222 <= (217 + 2*Padding) < 224
        # in this case -->      5 <= (2*Padding) < 7
        # in this case -->      2.5 <= (Padding) < 3.5
        # in this case -->      Padding = 3
    """

    def __init__(self, num_blocks, num_channels):
        super().__init__()

        self.conv1 = nn.Sequential(
            nn.Conv2d(3, 64, kernel_size=7, stride=2, padding=3, bias=False),
            nn.BatchNorm2d(64),
            nn.ReLU(inplace=True),
            # techincally, max pooling is part of conv2_x
            nn.MaxPool2d(kernel_size=3, stride=2, padding=1),
        )

        self.in_channels = 64

        layers = []
        for i, _ in enumerate(num_blocks):
            stride = (
                1 if i == 0 else 2
            )  # for conv2_x, no need to have stride 2 as maxpooling already reduces dim
            layers.append(
                self._make_layers(ResidualBlock, num_channels[i], num_blocks[i], stride)
            )

        self.body = nn.Sequential(*layers)

        self.avgpool = nn.AvgPool2d((1, 1))
        # image classification with 1000 different types of classes
        self.fc = nn.Linear(num_channels[-1], 1000)

    def _make_layers(self, block, out_channels, num_blocks, stride):
        layers = []
        # first block connects prev. channel dim to current channel dimm
        layers.append(block(self.in_channels, out_channels, stride))
        self.in_channels = out_channels

        # remaining has same channel dims
        for _ in range(1, num_blocks):
            layers.append(block(out_channels, out_channels, stride=1))

        return nn.Sequential(*layers)

    def forward(self, x):
        """
        Docstring for forward
        """
        x = self.conv1(x)
        x = self.body(x)
        x = self.avgpool(x)
        x = torch.flatten(x, 1)
        x = self.fc(x)
        return x

Bottleneck Block (CIFAR-10)

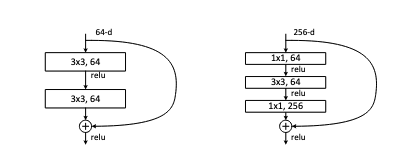

• Similiar to original [left] block but added complexity by having different kernel sizes (bottleneck) structure [right].
• Need to have additional channel for the bottleneck layers, but otherwise, remains the same.

class BottleNeckBlock(nn.Module):
    """
    Docstring for BottleNeckBlock
    """

    def __init__(self, in_channels, bottleneck_channels, out_channels, stride):
        super().__init__()
        self.conv1 = nn.Conv2d(
            in_channels=in_channels,
            out_channels=bottleneck_channels,
            stride=1,
            kernel_size=1,
        )

        self.bn1 = nn.BatchNorm2d(in_channels)

        self.conv2 = nn.Conv2d(
            in_channels=bottleneck_channels,
            out_channels=bottleneck_channels,
            stride=stride,
            kernel_size=3,
        )

        self.bn2 = nn.BatchNorm2d(bottleneck_channels)

        self.conv3 = nn.Conv2d(
            in_channels=bottleneck_channels,
            out_channels=out_channels,
            stride=1,
            kernel_size=1,
        )

        self.bn3 = nn.BatchNorm2d(out_channels)

        if in_channels != out_channels:
            self.skipconnection = LinearProjection(
                in_channel=in_channels, out_channel=out_channels, stride=stride
            )
        else:
            self.skipconnection = nn.Identity()

        self.act1 = nn.ReLU()
        self.act2 = nn.ReLU()
        self.act3 = nn.ReLU()

    def forward(self, x):
        """
        Docstring for forward

        :param self: Description
        """
        skipconnection = self.skipconnection(x)

        x = self.act1(self.bn1(self.conv1(x)))
        x = self.act2(self.bn2(self.conv2(x)))

        return self.act3(skipconnection + self.bn3(self.conv3(x)))

Resnet - CIFAR10

lass ResNetCifar10(nn.Module):
    """
    Docstring for Cifar10
    - input: (3,32,32)
    - for convolution, out_size = floor{(Input - Kernel_Size + 2 * Padding) / Stride} + 1
    """

    def __init__(self, num_blocks, num_channels):
        super().__init__()

        # want to preserve dim size of (32,32)
        # 32 = floor{(32 - 3 + 2*Padding) / Stride} + 1
        # 31 <= (29 + 2*Padding)  < 32
        # 2 <= 2*Padding < 3
        # Padding = 1

        self.conv1 = nn.Conv2d(
            in_channels=3, out_channels=64, kernel_size=3, stride=1, padding=1
        )
        self.bn1 = nn.BatchNorm2d(64)
        self.act1 = nn.ReLU()

        self.in_channels = 64

        layers = []
        for i, _ in enumerate(num_blocks):
            stride = (
                1 if i == 0 else 2
            )  # for conv2_x, no need to have stride 2 as maxpooling already reduces dim
            layers.append(
                self._make_layers(ResidualBlock, num_channels[i], num_blocks[i], stride)
            )

        self.blocks = nn.Sequential(*layers)

        self.avgpool = nn.AdaptiveAvgPool2d((1, 1))
        self.fc = nn.Linear(num_channels[-1], 10)

    def _make_layers(self, block, out_channels, num_blocks, stride):
        layers = []
        # first block connects prev. channel dim to current channel dimm
        layers.append(block(self.in_channels, out_channels, stride))
        self.in_channels = out_channels

        # remaining has same channel dims
        for _ in range(1, num_blocks):
            layers.append(block(out_channels, out_channels, stride=1))

        return nn.Sequential(*layers)

    def forward(self, x):
        """
        Docstring for forward
        """
        x = self.conv1(x)
        x = self.blocks(x)
        x = self.avgpool(x)
        x = torch.flatten(x, 1)
        x = self.fc(x)
        return x

Training Details (CIFAR-10)

• Based on the table provided, num_layers = [1 + 2 * config.N, 2 * config.N, 2 * config.N]
• "We use a weight decay of 0.0001 and momentum of 0.9" → weight_decay": 1e-4, momentum=0.9
• "These models are trained with a mini-batch size of 128" → "batch_size": 128
• "We start with a learning rate of 0.1, divide it by 10 at 32k and 48k iterations" → specific calculations are included in the code but need to use optim.lr_scheduler.MultiStepLR( optimizer, milestones=[77, 103], gamma=0.1 ) to specify leraning rates.
• "We compare n = {3, 5, 7, 9}, leading to 20, 32, 44, and 56-layer networks"
• "We follow the simple data augmentation in [24] for training: 4 pixels are padded on each side, and a 32×32 crop is randomly sampled from the padded image or its horizontal flip. For testing, we only evaluate the single view of the original 32×32 image" → transforms.RandomCrop(32, padding=4), transforms.RandomHorizontalFlip(), transforms.ToTensor(), transforms.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010)),
• Also note to change the last Linear layers to have a output dim of 10 as CIFAR-10 classifies 10 classes, as the name suggests.

Results (CIFAR-10)

• All detailed results can be found at the wandb report.
• One thing to note was that I trained the Resnet on the CIFAR-10 Model instead of ImageNet mostly due to time + compute constraints. ImageNet is a large dataset and would require a lot of VRAM and also training time.
• The training was done on a RTX4090, with torch==2.4.0.

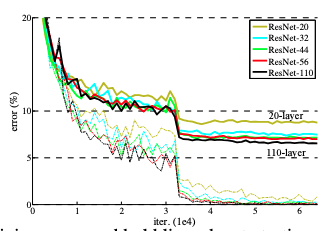

• Results from the paper:

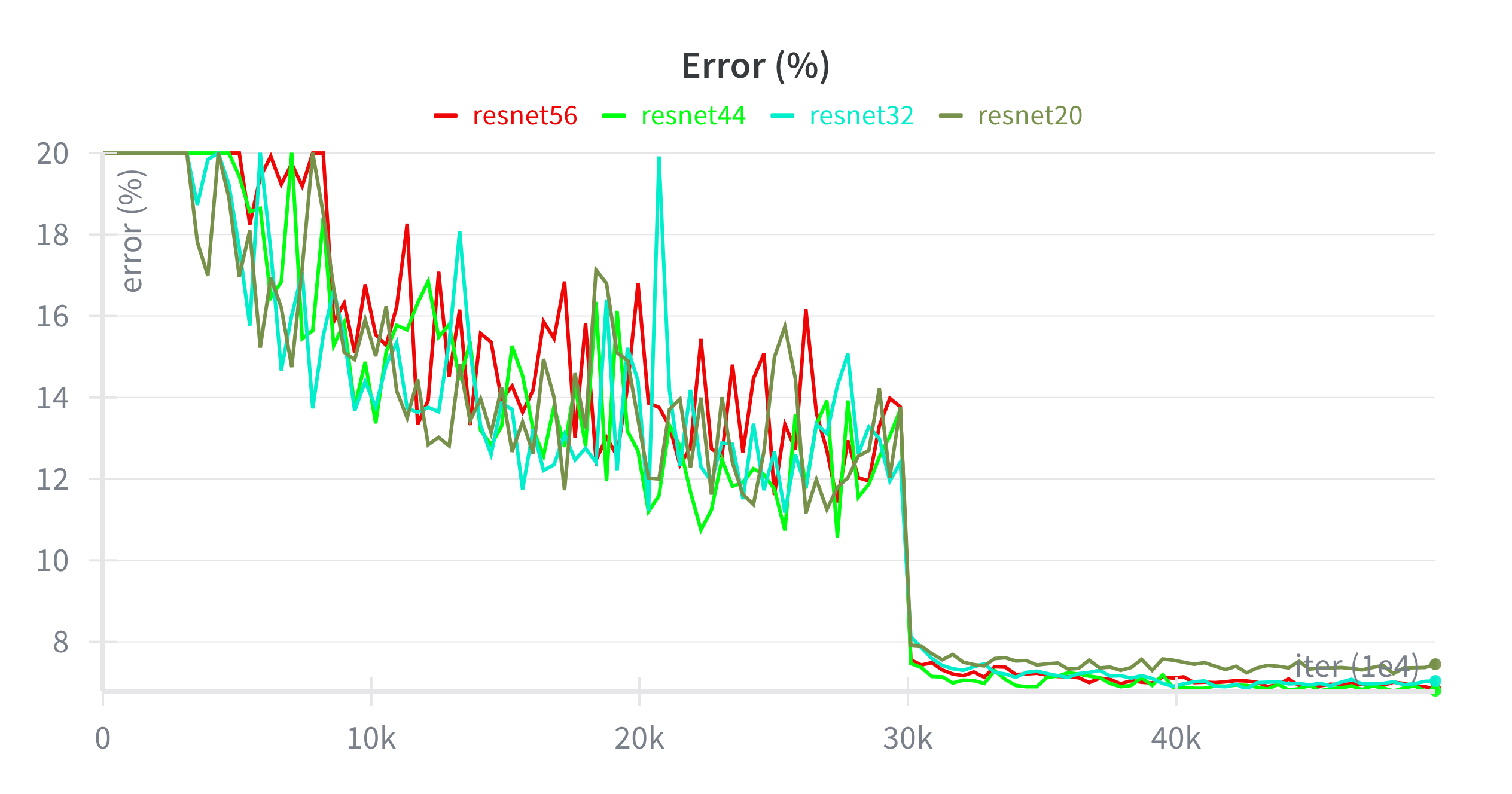

• My results:

• In detail: it is possible to observe that with ResNet, deeper architectures do seem to provide better performance, which obtains the motivation of the residual(skip) connections to be able to retain identity mapping even with deep non-linear layers.
