PySpark Review

These are some snippets from the Data Analysis with PySpark Book! It’s been a couple months since I reviewed this so I wanted to keep notes to help me remember.

Basic Concepts:

• Fundamentally, the concept of PySpark is to scale out with smaller and more machines instead of scaling up as it is often more cost efficient.

• When a task (also called a driver program) is launched, the cluster manager is responsible for allocating resources across the cluster to support it.
• The available capacity and resource information is stored in the SparkContext, which acts as the connection to the Spark cluster.

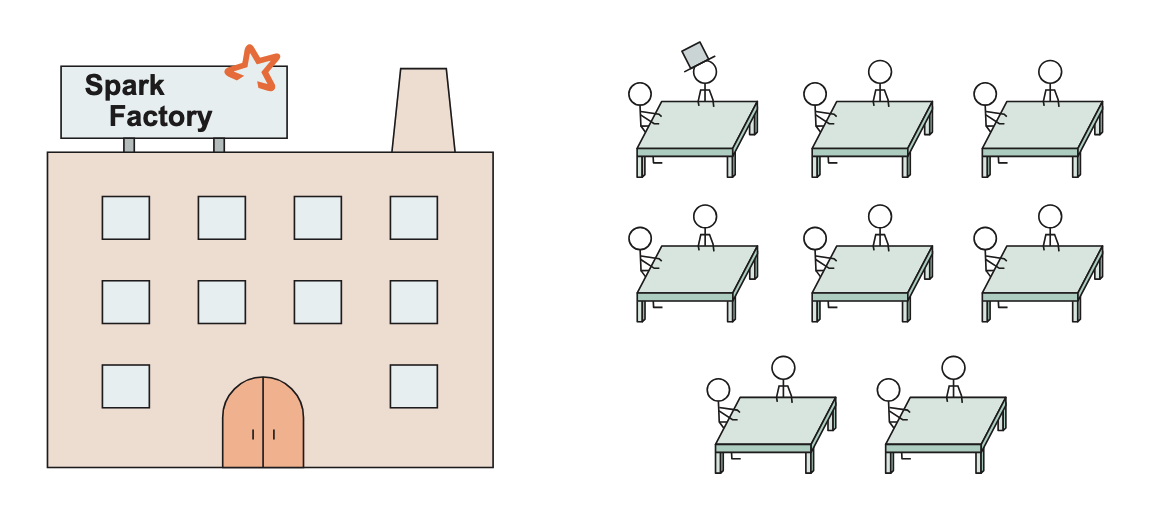

• In the illustrated “data factory” metaphor, the worker nodes (or simply, workers) are the work desks/stations that provide compute and memory resources.
• The executors are like the workers at each station — they carry out the actual tasks assigned to them.
• The master node is represented by the figure wearing the hat — think of it as the factory manager or owner. It allocates tasks to each workstation and oversees the workflow across the factory.

Lazy Execution:

• The way I understand lazy execution in Spark is that there are two types of operations: transformations and actions.
• Transformations include operations like adding columns, aggregations, or generating summary statistics — these define what to do, but don’t execute immediately.
• Actions are operations that trigger execution, such as writing to disk, collecting results, or showing data (e.g., .show(), .collect()).
• The “lazy” part of Spark means that it doesn’t actually execute any transformations until an action is called.
• For example, you could add a thousand columns, but until you perform an action, Spark simply records those operations as a plan — nothing is computed yet.
• Why is this good? Because storing a plan of instructions requires much less memory than executing each step immediately.
• It also allows Spark to optimize the execution plan (e.g., reordering operations for efficiency) before running anything.
• Lastly, this laziness makes it possible to reuse transformation plans, improving consistency and potentially reducing redundant work.

PySpark Code:

Initialization

• The entry point to Spark is through SparkSession, which allows to interact with the Spark cluster.

from pyspark.sql import SparkSession
# Initialize SparkSession
spark = SparkSession.builder # <-- Builder Pattern Abstraction!
    .appName("Some Name!")
    .getOrCreate()  # work both in batch & interactive mode

# Set logging level to 'FATAL' to avoid unnecessary log outputs
spark.sparkContext.setLogLevel("FATAL")

EDA of data

• For text files, it is pretty straightforward as .read.text() takes the file path.
• The data is read with each line in each row for a DataFrame object.
• We can confirm with the schema for the DataFrame as it has a single string-valued column.
• .show() allows to display the actual data, with the truncate parameter deciding how long it should display the content.

data = spark.read.text("../../data.txt")

# Show schema
data.printSchema()

#root
# |-- value: string (nullable = true)

# Display the first few rows
data.show(5, truncate=40)

#+----------------------------------------+
#|                                   value|
#+----------------------------------------+
#|The Project Gutenberg EBook of Pride ...|
#|                                        |
#|This eBook is for the use of anyone a...|
#|almost no restrictions whatsoever.  Y...|
#+----------------------------------------+

Analyze text data

• To analyze text data, we want the words itself, so we split the lines by spaces.
• Very similar to SQL, we use the select() statement to execute operations on the DataFrame.
• Note that .alias() allows it to rename the column once it is split, which we can confirm by viewing the new DataFrame.

from pyspark.sql.functions import split

# Split the text into words
lines = book.select(split(data.value, " ").alias("line"))

# Display the first few rows of the split data
lines.show(5)

#+--------------------+
#|                line|
#+--------------------+
#|[The, Project, Gu...|
#|                  []|
#|[This, eBook, is,...|
#|[almost, no, rest...|
#|[re-use, it, unde...|
#+--------------------+

• We can also see that the schema changed from a single string-column to a column called line taking an array of strings.

lines.printSchema()

#root
# |-- line: array (nullable = true)
# |    |-- element: string (containsNull = false)

• To get the words from an array of strings, we use the function .explode() to transform all arrays into each separate rows in the dataframe.
• Notice how the schema is changed to just a column of words now.

from pyspark.sql.functions import explode, col

words = lines.select(explode(col("line")).alias("word"))

words.show(10)

#+----------+
#|      word|
#+----------+
#|       The|
#|   Project|
#| Gutenberg|
#|     EBook|
#|        of|
#|     Pride|
#|       and|
#|Prejudice,|
#|        by|
#|      Jane|
#+----------+
#only showing top 10 rows

words.printSchema()
#root
# |-- word: string (nullable = false)

• After splitting and exploding the words, we often need to clean the data by normalizing the text, such as converting all words to lowercase and removing unwanted characters.
• To convert to lowercase, we use lower(). To remove non-alphabetical characters, we use regexp_extract(), which extracts matching characters from the string in regex manner.

from pyspark.sql.functions import lower, regexp_extract

# Convert words to lowercase
words_lower = words.select(lower(col("word")).alias("word_lower"))

# Remove non-alphabetic characters
words_clean = words_lower.select(
    regexp_extract(col("word_lower"), "[a-z]+", 0).alias("word")
)

# Show the cleaned words
words_clean.show(5)

#+---------+
#|     word|
#+---------+
#|      the|
#|  project|
#|gutenberg|
#|    ebook|
#|       of|
#+---------+
#only showing top 5 rows

• After cleaning, we may have some empty strings or special characters that we don’t want to analyze.
• We can filter these out by applying a condition to remove empty strings.

# Filter out empty words
words_nonull = words_clean.filter(col("word") != "")

• Now that we have clean words, we can group the words and count their occurrences. This is done using groupBy() and count().
• You can also sort the results by frequency to find the most common words in the text.

# Group words and count their occurrences
word_counts = words_nonull.groupby(col("word")).count()

# Show the most frequent words
word_counts.orderBy(col("count").desc()).show(10)
#+----+-----+
#|word|count|
#+----+-----+
#| the| 4205|
#|  to| 4121|
#|  of| 3662|
#| and| 3309|
#|    | 2776|
#|   a| 1944|
#| her| 1858|
#|  in| 1813|
#| was| 1795|
#|   I| 1740|
#+----+-----+

• Once we have analyzed the word counts, you may want to save the results for further analysis or for use in other systems.

# Save the word counts to a CSV file
word_counts.write.csv("word_counts.csv")

Refactoring what we have so far

• So, we got text data and transfromed it into word counts. However, there are a lot of lines of code and it does get a bit confusing to read. A better way is to chain the commands for better readability.
• Below is the same code that we have gone through but chained as one results dataframe.

results = (
    spark.read.text("../../data/gutenberg_books/1342-0.txt")
    .select(F.split(F.col("value"), " ").alias("line"))
    .select(F.explode(F.col("line")).alias("word"))
    .select(F.lower(F.col("word")).alias("lower_word"))
    .select(F.regexp_extract(F.col("lower_word"), "[a-z']*", 0).alias("clean_word"))
    .filter(F.col("clean_word") != "")
    .select(F.substring(F.col("clean_word"), 0, 1).alias("char"))
    .groupby(F.col("char"))
    .count()
    .orderBy(col("count").desc())
)

• This was a very brief introduction to PySpark, and I think it’s quite straightforward for anyone new to the tool. Next time I write about PySpark, I plan to focus more on working with it in the context of an actual project. Thanks for reading!
